▍Xibang material number：XB-ELD20X

Product type: Phototransistor Rated current: 60mA/200mA Rated voltage: 1.2V/80V Life test: 5000 times

Installation method: Welding insertion and extraction force: 3-30N Operating temperature: -40 ℃± 105 ℃ Product certification: ROHS

3D files and drawings

3D filesXB-ELD20X Specifications GO
一般光耦的CTR量测与计算 Ver1.0(简)
一般光耦应用于数据传送 Ver1.0(简)
3D filesXB-ELD20X Specifications GO
一般光耦的CTR量测与计算 Ver1.0(简)
一般光耦应用于数据传送 Ver1.0(简)

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation

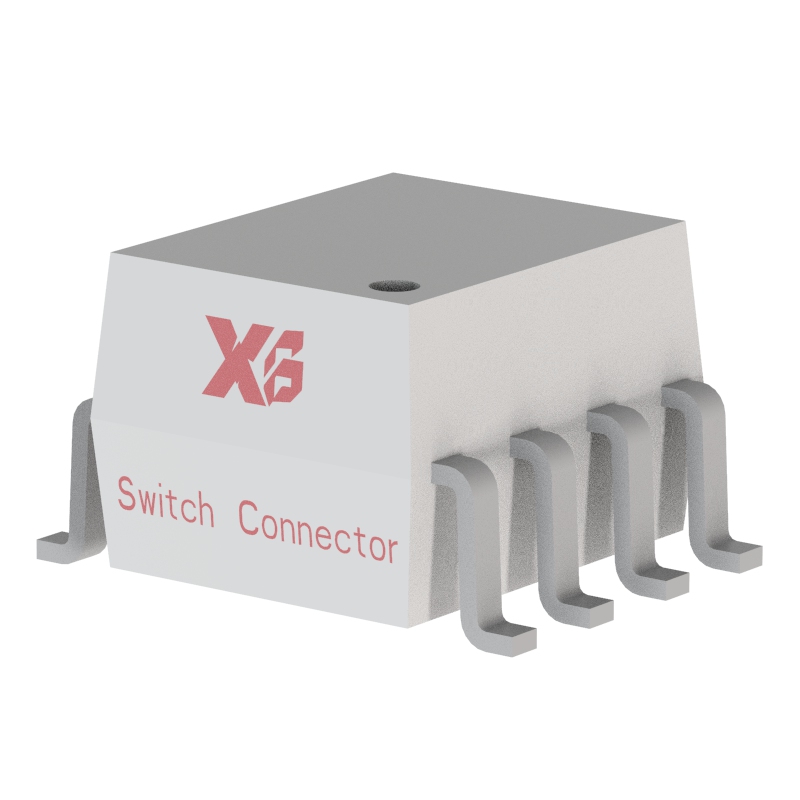

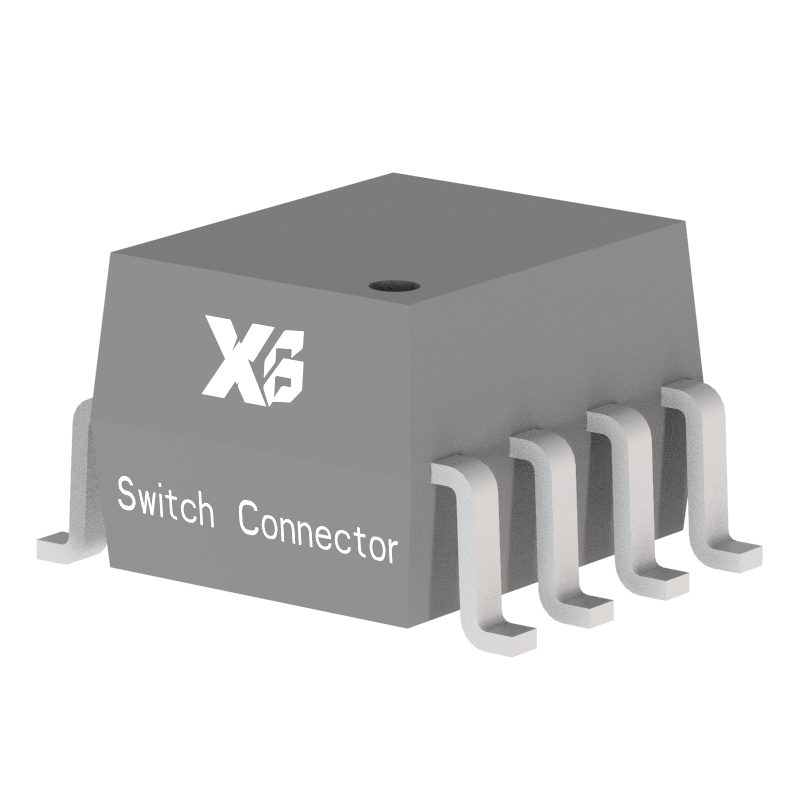

XB-ELD20X 3D Drawings		3.92 * 4.88 * 3.18mm optocoupler/optocoupler electronic components/SMT optocoupler/optocoupler phototransistor output/inline optocoupler/optocoupler/optocoupler chip components/optocoupler coupler 8PIN	8Pin SOP-DC	Normal	A week	0.36g	1000	3000	10000	Compatible Xibang	Consult
XB-ELD20X-X 3D Drawings		3.92 * 4.88 * 3.18mm optocoupler/optocoupler electronic components/SMT optocoupler/optocoupler phototransistor output/inline optocoupler/optocoupler/optocoupler chip components/optocoupler coupler 8PIN	8Pin SOP-DC	Normal	A week	0.36g	1000	3000	10000	Compatible Xibang	Consult

product type	8Pin SOP-DC

characteristic	• Single/dual channel coupler
	• High isolation voltage Viso = 3750 Vrms between input and output
	• Current transfer ratio (CTR: 40~320%, IF =±10mA, VCE = 5V)
	• Lead-free, RoHS compliant and halogen-free

Application areas	• Feedback control circuit
	• Interfaces and coupling systems with different potentials and impedances
	• Universal switching circuit
	• Monitoring and detection circuits

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive

Complies with EU ELV Directive 2000/53/EC requirements
