| Product Center > Switch > Door lock switch

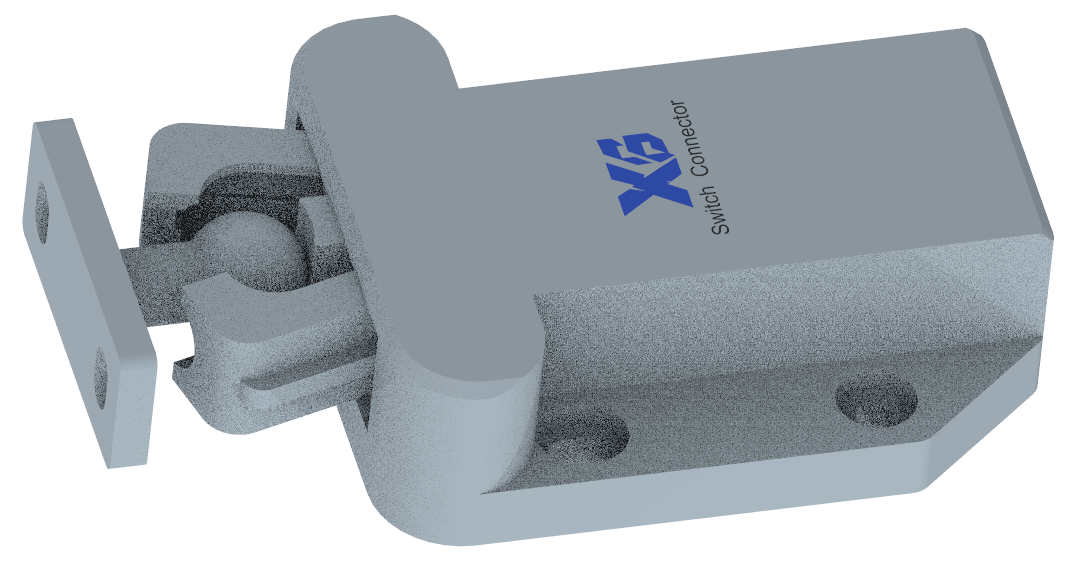

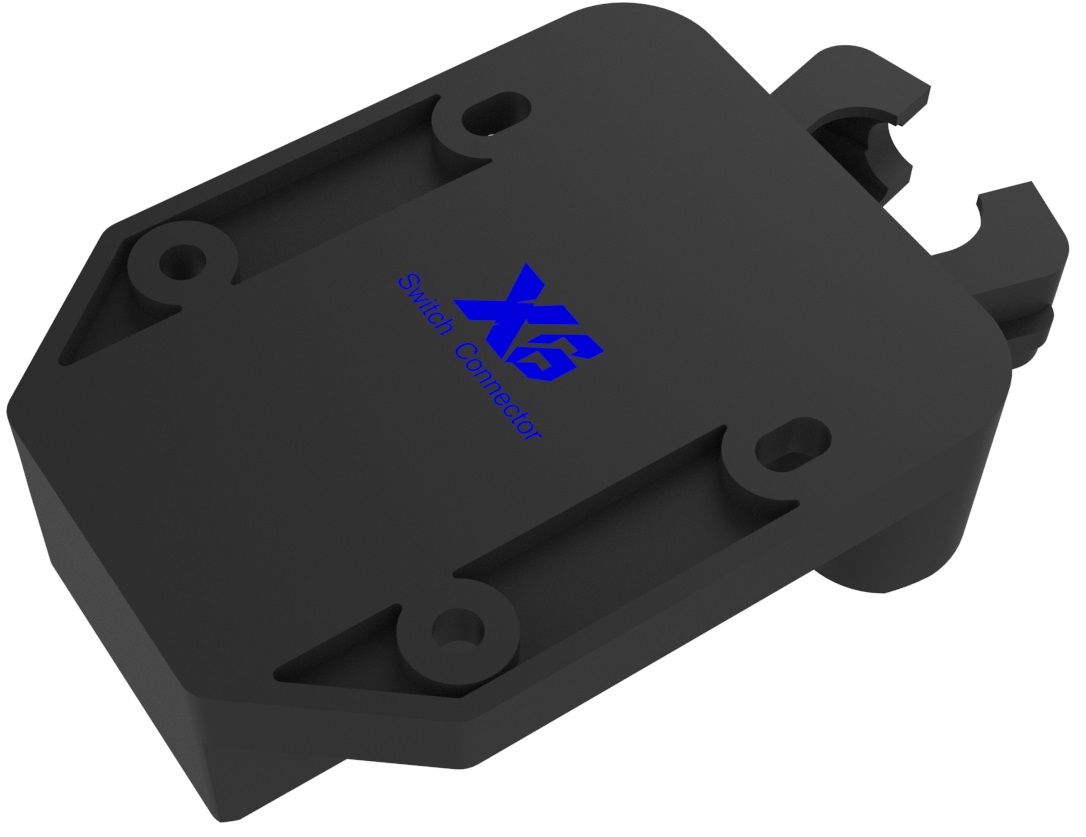

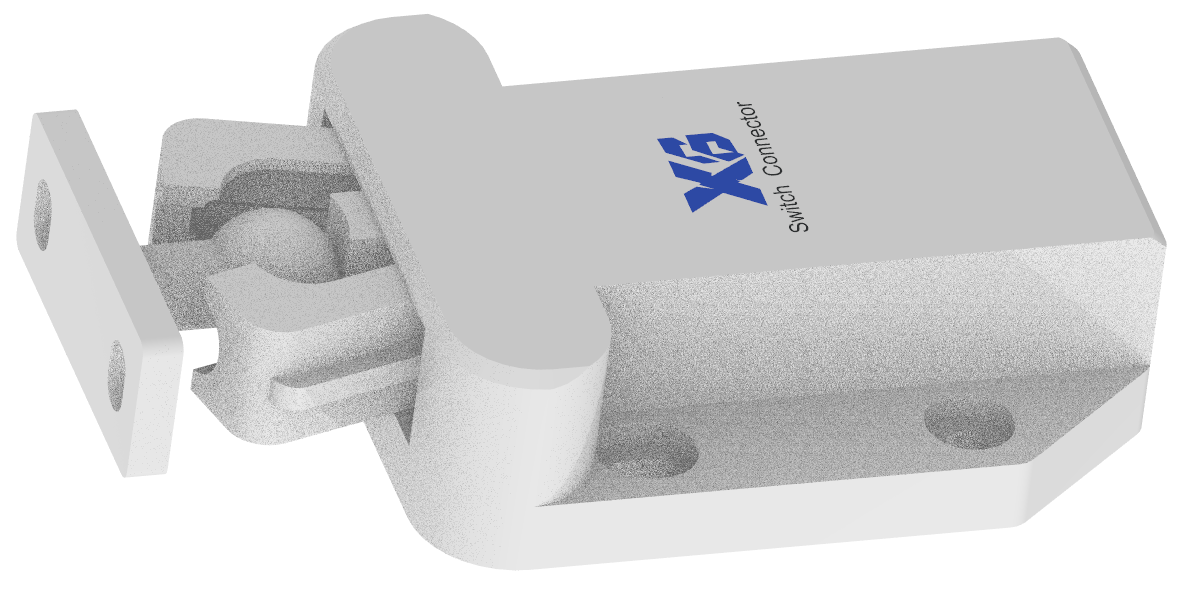

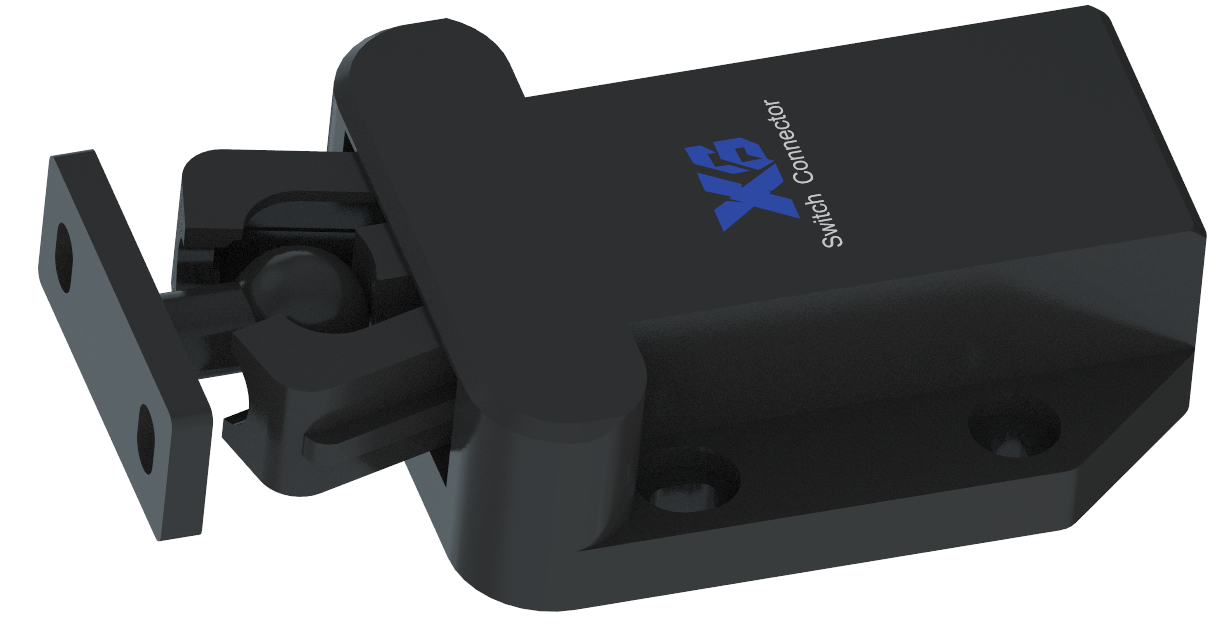

▍Xibang material number：XB-PR-103

Product type: Door lock switch life test: 10000 times Usage temperature: -25 ℃ ± 85 ℃

Operating force: 300gf ± 800gf Salt spray test: 48 hours Product certification: ROHS

3D files and drawings

3D filesXB-PR-103 Specifications Door latch specification
3D filesXB-PR-103 Specifications Door latch specification
3D filesXB-PR-103 Specifications Door latch specification
3D filesXB-PR-103 Specifications Door latch specification
3D filesXB-PR-103 Specifications Door latch specification

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation
XB-PR-103 3D Drawings		Door lock switch/latch switch/press door lock/mechanical door lock switch/latch switch/press latch switch/latch press switch/mechanical lock switch/mechanical door latch switch/trash can switch/glasses box switch/car door lock switch/broom switch		Normal	4-7 days	0.000	500	2000	Normal	Compatible Xibang	Consult
XB-PR-103 3D Drawings		Door lock switch/latch switch/press door lock/mechanical door lock switch/latch switch/press latch switch/latch press switch/mechanical lock switch/mechanical door latch switch/trash can switch/glasses box switch/car door lock switch/broom switch		Normal	4-7 days	0.000	500	2000	Normal	Compatible Xibang	Consult
XB-PR-103 3D Drawings		Door lock switch/latch switch/press door lock/mechanical door lock switch/latch switch/press latch switch/latch press switch/mechanical lock switch/mechanical door latch switch/trash can switch/glasses box switch/car door lock switch/broom switch		Normal	4-7 days	0.000	500	2000	Normal	Compatible Xibang	Consult
XB-PR-103 3D Drawings		Door lock switch/latch switch/press door lock/mechanical door lock switch/latch switch/press latch switch/latch press switch/mechanical lock switch/mechanical door latch switch/trash can switch/glasses box switch/car door lock switch/broom switch		Normal	4-7 days	0.000	500	2000	Normal	Compatible Xibang	Consult
XB-PR-103 3D Drawings		Door lock switch/latch switch/press door lock/mechanical door lock switch/latch switch/press latch switch/latch press switch/mechanical lock switch/mechanical door latch switch/trash can switch/glasses box switch/car door lock switch/broom switch		Normal	4-7 days	0.000	500	2000	Normal	Compatible Xibang	Consult

Product material	1. Door lock switch	material quality
	2. The base	POM
	3. Claw	PA46/PA66
	4. Spring	SUS 304
	5. The crochet	SUS 304

	working life	For 1,000,000 cycles
	Operation force	400±700gf
	Use the temperature range	-20℃ to±70℃
	working temperature	-25℃ to±75℃
	stretching resistance	2kg for 1kg / 1 min
	pigment	Regular black / white

Environmental resistance	Cold resistance	-40±2℃ for 96h
	resistance to effect of heat	85±2℃ for 96h
	Moisture resistance	60 ± 2℃, 90 to 95% relative humidity for 96h

When automatically immersed in welding	preheat temperature	Up to 110℃
	Preheat temperature time	Maximum 60 seconds
	welding temperature	Up to 260℃
	Welding impregnation time	Maximum 5s
	Welding times	Below 2 times

Hand welding	welding temperature
Hand welding	welding temperature	Up to 360℃
	Continuous welding time	Maximum 3 seconds
	Welding bucket capacity	Maximum 60W

storage condition	ambient temperature	-10℃ to 40℃, below 85% relative humidity
	memory time	The standard is 3 months, the limit is 6 months, avoid saving in the environment with corrosive gas, avoid direct sunlight.

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive

Complies with EU ELV Directive 2000/53/EC requirements
