▍Xibang material number：XB-X10C2515TP

产品证书

UL/CUL:E523734

3D files and drawings

3D filesXB-X10C2515TP Specifications XB-X10C2515TP-

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation

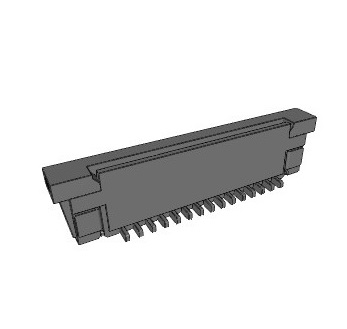

XB-X10C2515TP 3D Drawings		FPC connector 1.0mm vertical flat foot thickness H=2.5mm height 5.5mm 15P tinning	26350	normal	1-2 weeks	0.000	1500/disc	3000	10000	Compatible Xibang	Consult

Material
Contact Material: Phosphor Bronze
Standard Insulator Material: High-Temp Plastic
Housing Material: High-Temp Plastic (UL94V-0), White
Actuator Material: High-Temp Plastic (UL94V-0), Black
Plating
Underplating: Nickel
Contact Plating: Tin or Gold Flash
Fitting Nail: Brass, tin plated
Electrical
Voltage Rating: 50V AC/DC
Current Rating: 0.4A AC/DC
Contact Resistance: 40mΩ Max.
Insulation resistance: 50MΩ Min. 250 V DC for 1 minute between adjacent terminal
Dielectric withstanding voltage: 250V AC for 1 minute between adjacent terminal, no breakdown
Mechanical
Durability: 20 Cycles
Mating Force: ZIF
Applicable Wire Range: 0.3mm thick
Environmental and Processing
Operating Temperature: -25°C to +85°C
Solder Temperature: Peak temp 260°C (+0/-5°C) Maximum (5 seconds)

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive

Complies with EU ELV Directive 2000/53/EC requirements
