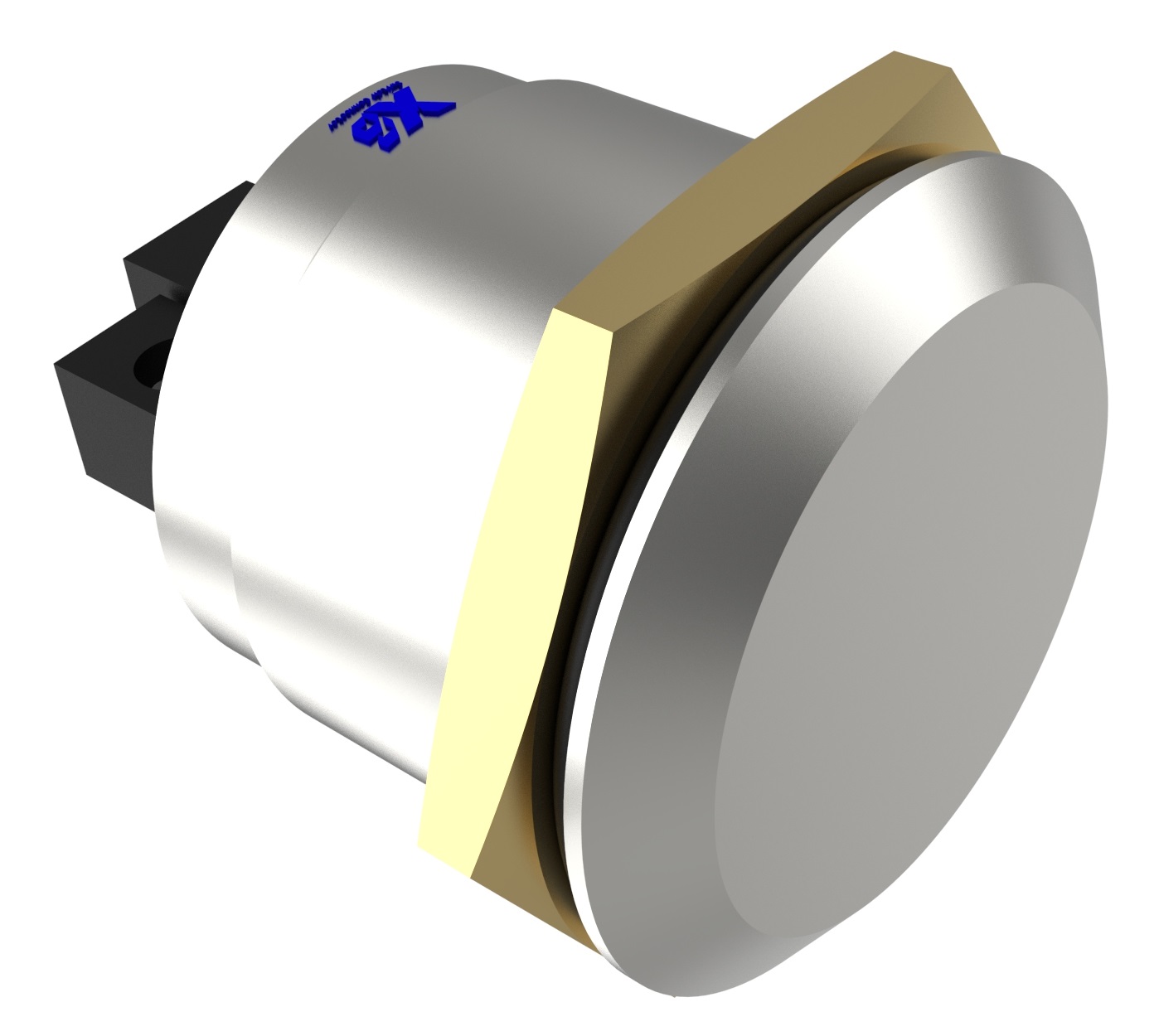

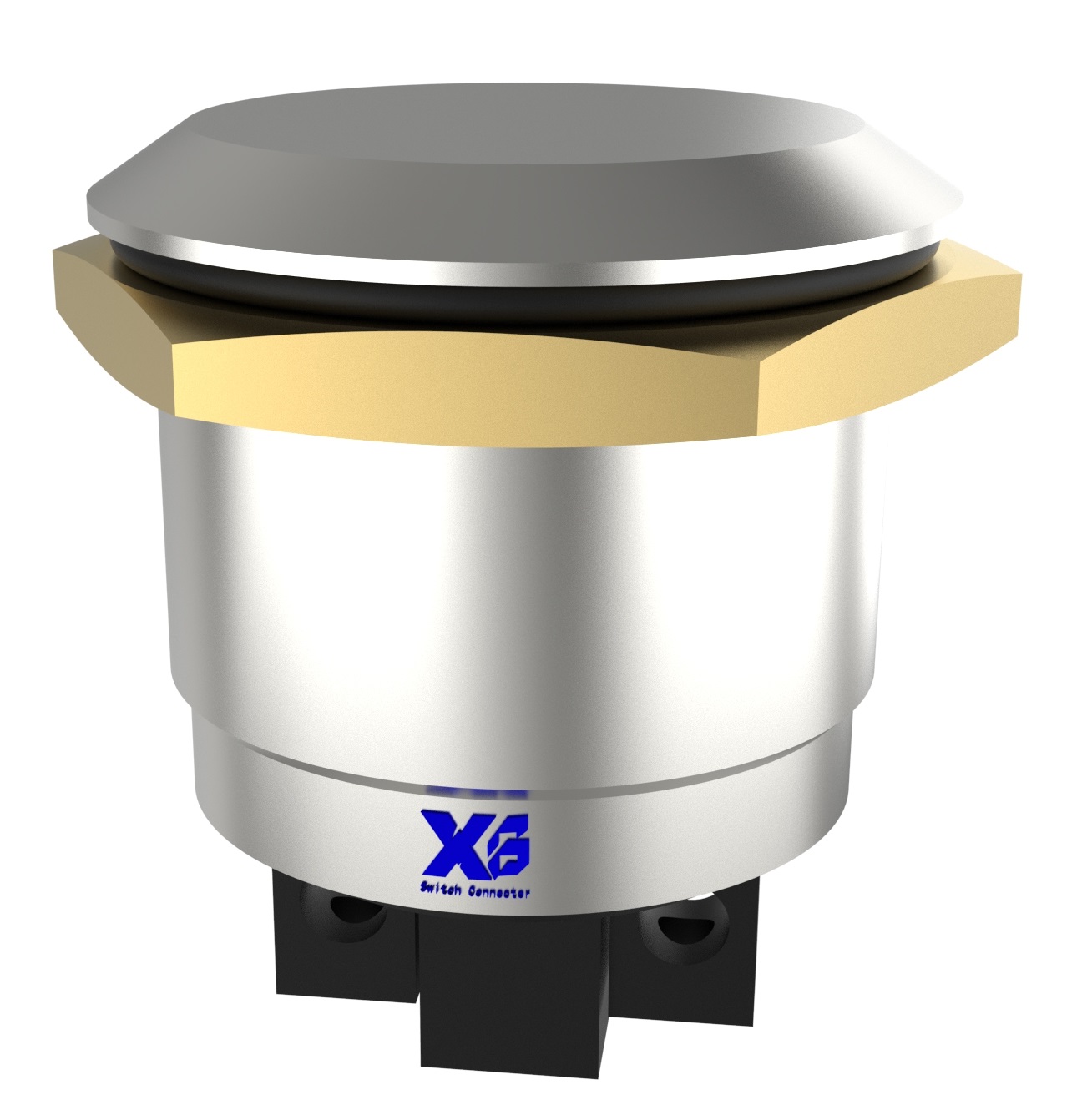

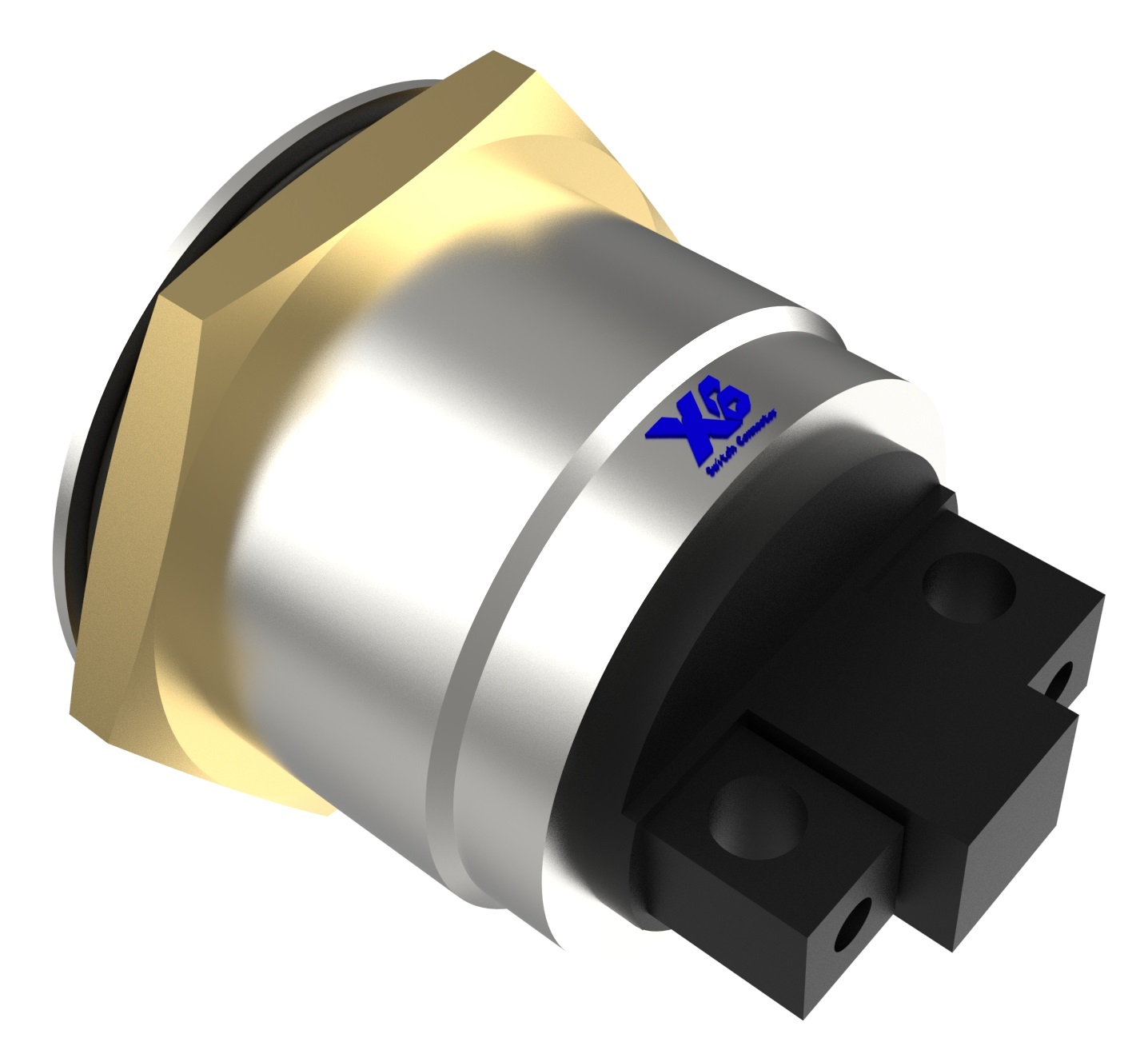

▍Xibang material number：XB-PBM-19-11M-F-NNN-S0-S

Product name: Metal push button switch Rated current: 2A/5A Rated voltage: 36V DC/250V AC Switch function: No lock/self-reset

Operating force: 600gf ±200gf Withstand voltage: 1500V AC Service life: 10,000 times Waterproof level: IP50

Contact resistance: 50mΩ Insulation resistance: 100mΩ Operating temperature: -20℃±85℃ Product certification: ROHS

3D files and drawings

3D filesXB-PBM-19-11M-F-NNN-S0-S Specifications XB-PBM19
3D filesXB-PBM-19-11M-F-NNN-S0-S Specifications XB-PBM19
3D filesXB-PBM-19-11M-F-NNN-S0-S Specifications XB-PBM19

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation
XB-PBM-19-11M-F-NNN-S0-S 3D Drawings		High current metal switch Ø 19/metal button switch Ø 19/metal button switch/metal self-locking switch ON OFF/metal light touch switch PUHS ON/metal switch Ø 19mm	Metal button switch	Normal	7 days/15 days	0.5g	1000	1000	1000	Compatible Xibang	Consult
XB-PBM-19-11M-F-NNN-S0-S-X 3D Drawings		High current metal switch Ø 19/metal button switch Ø 19/metal button switch/metal self-locking switch ON OFF/metal light touch switch PUHS ON/metal switch Ø 19mm	Metal button switch	Normal	7 days/15 days	0.5g	1000	1000	1000	Compatible Xibang	Consult
XB-PBM-19-11M-F-NNN-S0-S-X-X 3D Drawings		High current metal switch Ø 19/metal button switch Ø 19/metal button switch/metal self-locking switch ON OFF/metal light touch switch PUHS ON/metal switch Ø 19mm	Metal button switch	Normal	7 days/15 days	0.5g	1000	1000	1000	Compatible Xibang	Consult

product material	1. Metal button switch	Material
	2. Actuator	PA66
	3. Base	PA66/POM
	4. Base	PA66/GF
	5.Terminal	Brass silver plated/brass gold plated
	6.Spring	SUS304
	7. Nuts	Brass/silver plated/nickel plated
	8.Gasket	Brass/silver plated/nickel plated

Electrical properties	Operating temperature range	-20℃±70℃
	to maximum rating (resistive load)	5A 250V AC
	to minimum rating (resistive load)	2A 36V DC
	Withstand voltage	1500VAC
	Insulation resistance	100MΩ
	Contact resistance (initial/after life)	50MΩ

Structural properties	Operating functions: ON OFF / PUHS ON	Off (on) Self-locking/unlocked
	Configuration (extreme throw):	Single Pole - Double Throw
	Actuator type:	Rubber handle
	Actuator direction:	touch
	Number of actuators:	1

Durability	No load life	10000 times
	Load life (maximum rated load)	10000 times

Environmental resistance	Cold resistance	-20±2°C/96h
	Heat resistance	85±2°C/96h
	Moisture resistance	40±2°90 to 95% relative humidity 96/h

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive

Complies with EU ELV Directive 2000/53/EC requirements
