XB-X05A20H10G| Identifiant du produit | Image du produit | Description du produit | Code produit | Statut de production | Cycle d'expédition | Poids brut de l'article | MPQ | MOQ | Production en transit | Achats compétitifs | Fonctionnement |

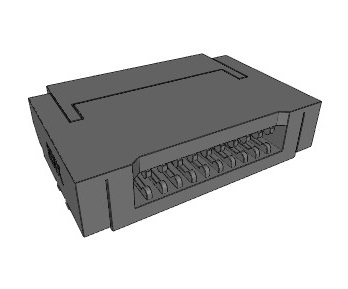

XB-X05A20H10G  3D
 Dessins |
  |
FPC连接器 0.5mm 翻盖式 H=2.0mm 后锁 10P 镀金 | 20156 | 正常 | 1周 | 0.207 | 1500个/圆盘 | 4500 | 10000 |  Compatibles xibang |
Material
Contact Material: Phosphor Bronze
Standard Insulator Material: LCP
Housing Material: LCP (UL94V-0), White /Natural
Actuator Material: LCP (UL 94V-0), Black
Plating
Underplating: Nickel
Contact Plating: Tin or Gold Flash
Fitting Nail: Brass, tin plated
Electrical
Voltage Rating: 30V AC/DC
Current Rating: 0.2A AC/DC
Contact Resistance: 40mΩ Max.
Insulation resistance: 50MΩ Min. 250 V DC for 1 minute between adjacent terminal
Dielectric withstanding voltage: 250V AC for 1 minute between adjacent terminal, no breakdown
Mechanical
Durability: 20 Cycles
Mating Force: ZIF
Applicable Wire Range: 0.3mm thick
Environmental and Processing
Operating Temperature: -25°C to +85°C
Solder Temperature: Peak temp 260°C (+0/-5°C) Maximum (5 seconds)
Contact Material: Phosphor Bronze
Standard Insulator Material: LCP
Housing Material: LCP (UL94V-0), White /Natural
Actuator Material: LCP (UL 94V-0), Black
Plating
Underplating: Nickel
Contact Plating: Tin or Gold Flash
Fitting Nail: Brass, tin plated
Electrical
Voltage Rating: 30V AC/DC
Current Rating: 0.2A AC/DC
Contact Resistance: 40mΩ Max.
Insulation resistance: 50MΩ Min. 250 V DC for 1 minute between adjacent terminal
Dielectric withstanding voltage: 250V AC for 1 minute between adjacent terminal, no breakdown
Mechanical
Durability: 20 Cycles
Mating Force: ZIF
Applicable Wire Range: 0.3mm thick
Environmental and Processing
Operating Temperature: -25°C to +85°C
Solder Temperature: Peak temp 260°C (+0/-5°C) Maximum (5 seconds)
